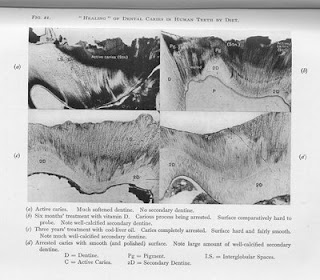

The hardening of carious areas that takes place in the teeth of children fed on diets of high calcifying value indicates the arrest of the active process and may result in “healing” of the infected area. As might be surmised, this phenomenon is accompanied by a laying down of a thick barrier of well-formed secondary denture. Illustrations of this healing process can be seen in Figs. 21 (b), (c) and (d). Summing up these results it will be clear that the clinical deductions made on the basis of the animal experiments have been justified, and that it is now known how to diminish the spread of caries and even to stop the active carious process in many affected teeth.The following reference contains a summary of Dr. May Mellanby's experiments on healing tooth decay in children using diet: Mellanby, M. et al. British Medical Journal. Issue 1, page 507. 1932. The diet they used was typically a combination of some source of vitamin D (cod liver oil or irradiated ergosterol), plus liberal full-fat dairy, meats, eggs, vegetables, potatoes and grains low in phytic acid such as white bread. The most effective version of his diet, however, did not include grains.
In the book Nutrition and Physical Degeneration, Dr. Price provides X-rays showing the re-calcification of a mouth full of cavities using a similar diet.
